Aerial Pipeline Leak Surveillance

pipelineAerial Pipeline Leak Surveillance System (APLS)(patented)

Pipeline leaks are a very real concern. The APLS provides fast, cost effective detection of gas and liquid leaks from surface and underground pipeline. The APLS gives you the capability to target and prevent:

  • losses in product and resulting revenue
  • potentially dangerous spills
  • needless down-time
  • environmental damage
  • risk to personal safety

Considering the number of miles of gas and liquid pipeline, the potential for leaks is a reality. The capability of early leak detection can prevent emergency situations and reduce the possibility of future leaks.

A pro-active maintenance program that detects leaks in the early stages is an effective safety strategy and ensures pipeline reliability.

The APLS has detected leaks as small as one cubic foot per minute.

pipeline2The Company

Since 1984, Airwave has been committed to excellence in specializing in the development of the latest in gas detection equipment and monitoring techniques.

The APLS bears this out, by bringing to the marketplace a technology providing early leak detection in a quick, safe and cost effective way.

The System

Having proven success with its ground based Hydrocarbon Analyzer, Airwave modified this unit to operate on a moving instrument platform.

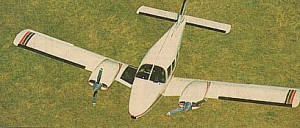

This analyzer, combined with a Global Positioning System (GPS) and a Data Acquisition System, is mounted in a helicopter or fixed wing aircraft to perform airborne leak surveillance on both gas and liquid pipeline.

herald9406aThe aircraft is flown at 100 to 200 feet above the pipeline right of way at a speed of 100 MPH. The sample probe on the aircraft extends into the undisturbed air beyond the aircraft’s nose and the analyzer detects any hydrocarbon anomalies in the sample air. The resulting data is processed with Airwave’s proprietary software and reduced to simple coordinates for ground crews to investigate.

  1. Emergency Response Leak Locating Surveillance
    Airwave provides emergency response with aircraft on a 24 hour standby. In addition Airwave can provide assistance in coordinating ground efforts.
  2. Scheduled Pipeline Surveillance
    Performed on a semi-annual or annual basis, Airwave can maintain a database of each survey for subsequent comparisons of anomalies detected.
  3. Pipeline Integrity Surveillance
    This proactive program involves a detailed hydrocarbon emission profile compiled from numerous passes. This evaluation is idea for older pipeline integrity.

Leasing the System

Should your company prefer to utilize your own aircraft, Airwave will provide comprehensive on site training for the installation and operation of the APLS. All necessary equipment and software, as well as Airwave’s expertise are available to your company.

Whether you require emergency response, scheduled pipeline surveillance or proactive maintenance, Airwave has a solution for you.

Click here for more information regarding the Aerial Pipeline Surveillance using the Airwave Electronics Ltd. Model AE2420 Flame Ionization Hydrocarbon Analyzer
