AE-SA-A
AE-SA-A Serial Solar Airfield Light (requires Adobe PDF Reader)

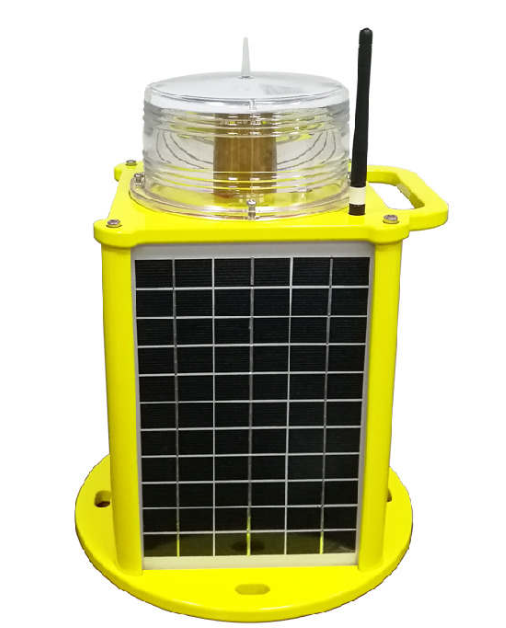

AE-SA-A Serial Solar Airfield Light
The Serial Solar Airfield Light is suited for use on permanent airports/heliports where cable power is not convenient or for temporary aerodromes.
Features:
- LED as light source saving power consumption and maintenance, 95% than equivalent incandescent light
- Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68)
- PC housing, UV resistance, shockproof and corrosion proof; powder coated die casting aluminum base
- 4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
Compliance:
ICAO Annex 14 Vol. I (7th. Edition, July 2016), ICAO Annex 14 Volume ǁ Heliports 5.3
| Specifications | AE-SA-A Serial Solar Airfield Light |
|---|---|
| Light Characteristics | |
| Light Source | LED |
| Available Colors | White, Blue,Red/Green,White, Green, Red |
| Physical Characteristics | |
| Light intensity(cd) | ≥36cd(White, Red, Green) |
| Flash Characteristics | Steady (Flashing mode is optional) |
| LED Life Experience (hours) | >100,000 |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Battery Service Life | Average 5 years |
| Automony (Hours) | 40hours (Highest intensity), longer is optional |
| Physical Characteristics | |
| Body Material | Aluminum Alloy |
| Base Material | Powder-coated die-casting aluminum |
| Installation Size | 200X200XM10 |
| Overall Size (mm) | 250×250×320 |
| Weight(kg) | 5 |
| Product Life Expectancy | Average 10 years |
