AE-HP-WS

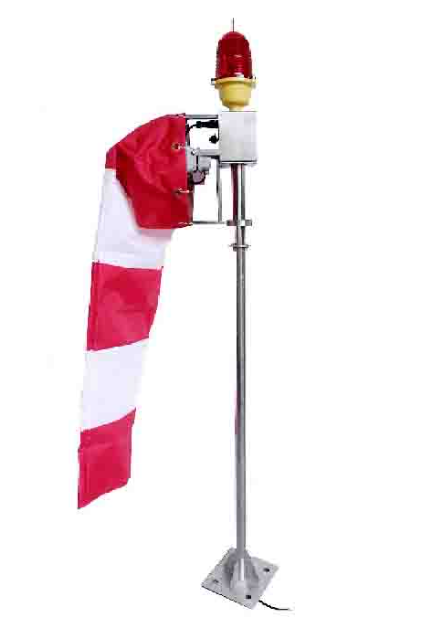

Internally Illuminated Solar Wind Sock

A solar-powered LED illuminated windsock for enhanced visibility and nighttime operations, designed to be environmentally resistant for all conditions.

Features:

• Power supply available in 12VDC
• Pole is made of corrosion resistant and wind resistant stainless steel
• One obstruction light on top, one flood light for illumination
• Pole height is customisable (1m, 2m, 2.5m, 3m, 4m, 5m)
• Windsock color options: orange, red/white, red, white
• Windsock material: PVC, Nylon
• Photocell for day/night operation
• Optional frangible couplings and wireless remote control

Windsock dimension options:

• Pole height:＜4m, Length: 1.2m, outer diameter: 300mm, inner diameter: 150mm
• Pole height: 4m-6m, Length: 2.4m, outer diameter: 600mm, inner diameter: 300mm
• Pole height: ＞6m, Length: 3.6m, outer diameter: 900mm, inner diameter: 450mm

Compliance:

ICAO Annex 14 Volume 5.1.1, FAA AC 150/5390-2B

Specifications	AE-HP-WS Internally Illuminated Solar Wind Sock
Electrical Characteristics
Light Source	LED
Emitting Colour	White
Power Input	12VDC
Service Life of LED	>100,000 hours
Circuit Protection	Integrated
Solar Module Type	Mono crystalline silicon, 50W
Battery Type	Lead acid battery, 12V/200AH
Autonomy (hours)	120 Hours (Optional)
Environmental Factors
Ambient Temperature (°C)	-55~70
Humidity	10~95%
Wind Speed	80m/s
Waterproof	IP66
