AE-HP-DC

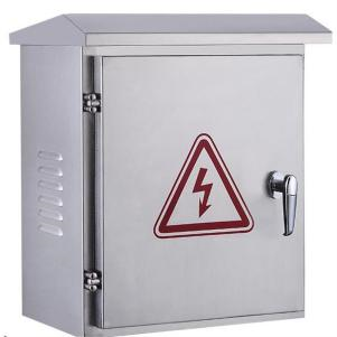

AE-HP-DC Heliport Variable Lighting Controller
Heliport Variable Lighting Controller
The AE-HP-DC is designed for heliport lighting control with variable intensity. This model is designed for inclement weather and is water resistant, UV resistant, and protected against electrical surges.
Features:
- 120VAC input and output with customisation available
- 15kA to a max of 40kA surge protection
- Overvoltage protection
- Adjustable 3-stage light intensity
Compliance:
ICAO and FAA regulations and CAP427
| Specifications | AH-HP-DC Heliport Variable Lighting Controller |
|---|---|
| Electrical Characteristics | |
| Power input | 12VDC, 48VDC, 110VAC, 240VAC, etc. |
| Physical Characteristics | |
| Body Material | Stainless steel |
| Overall size(mm) | 300X400X500 (customisation optional) |
| Weight(kg) | 5 (customisation optional) |
| Product Life Expectancy | ≥10 years |
| Environmental Factors | |
| Temperature Tolerance(℃) | -55-70 |
| Humidity Tolerance | 0-95% |
| Max Wind Speed Tolerance(m/s) | 80 |
| Water Resistance | IP65 |
